R type cable clamp

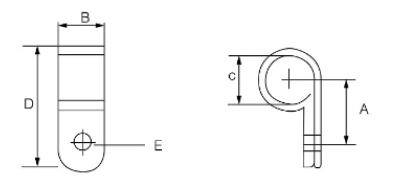

R type cable clamp details
Product characteristics and material
Material: UL NYLON66(natural), 94V-2 fire rating.
Usage: INSERT THE CABLE INTO THE BUTTON RING (as in the attached picture)then fix the screw.
Application: Electrical, electronic, air conditioning wiring fixation.
| ITEM NO | inch | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| UC-3.3 | 1/8" | 9.5 | 9.6 | 3.3 | 17 | 4.0 |
| UC-5.2 | 3/16" | 10.5 | 9.6 | 5.5 | 18.5 | 4.0 |
| UC-6.4 | 1/4" | 12 | 9.6 | 6.35 | 21 | 4.0 |
| UC-8.4 | 5/16" | 12.5 | 9.6 | 8.35 | 22.8 | 4.0 |
| UC-10.4 | 3/8" | 13.5 | 9.6 | 10.35 | 23.8 | 4.0 |
| UC-13.2 | 1/2" | 13.5 | 9.6 | 12.7 | 25.8 | 4.0 |
| UC-16 | 5/8" | 16.5 | 9.6 | 15.8 | 30.5 | 4.0 |
| UC-19 | 3/4" | 17 | 12 | 19 | 35.5 | 4.0 |
| UC-23 | 1" | 26 | 13 | 23 | 44 | 4.0 |
| UC-30 | 1 1/4" | 23 | 12.7 | 30 | 47 | 4.0 |
| UC-50 | 2 1/4" | 41 | 12.5 | 50 | 77 | 4.0 |
