Cable tidy(attached clip)
Cable tidy(attached clip) details
Product characteristics and material
Material: PE(wire trimmer ABS)
End method: Cut the required length, cooperate with the special tool, pressthe upper end with one hand, pull the tool down, and the whole line can befinished instantly.
End FORCE: lf this product is easy to disassemble if it is changed, the coil forcewill remain unchanged when the original coil belt is re-used.
Use: Beautiful and safe end wire and protect wire from cutting and insulation.
Special color, receive custom.

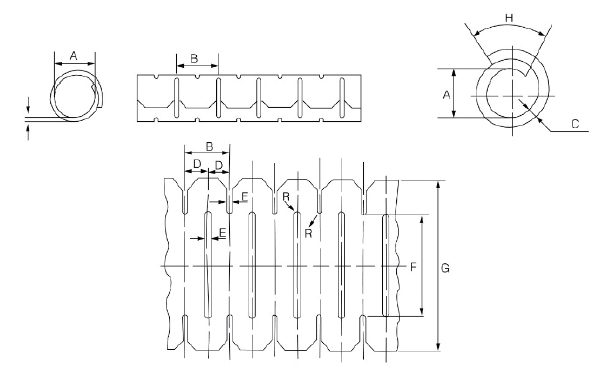

| ITEM NO | A(mm) | B(mm) | C(mm) | MAX DIA(mm) | D(mm) | E(mm) | F(mm) | T(mm) | H(mm) |
| JG-10 | 8 | 10 | 0.7 | 9.0 | 5.0 | 1.5 | 20.0 | 34.0 | 5~8 |
| JG-15 | 13 | 14 | 0.9 | 15 | 7.0 | 2.0 | 37.0 | 53.0 | 6~10 |
| JG-20 | 18 | 18 | 1.0 | 20 | 9.0 | 2.0 | 52.0 | 72.0 | 10~15 |
| JG-25 | 23 | 21 | 1.1 | 25 | 10.5 | 2.2 | 64.0 | 88.0 | 12~17 |
| JG-30 | 27 | 23 | 1.2 | 29 | 11.5 | 2.3 | 78.0 | 100.0 | 15~20 |
| JG-35 | 33 | 29 | 1.3 | 35 | 14.5 | 2.8 | 98.0 | 125.0 | 18~25 |
