Self adhesive tie mount
Self adhesive tie mount details
The product description
Material: UL NYLON66(natural color), 94V-2 fire rating, base back glue.

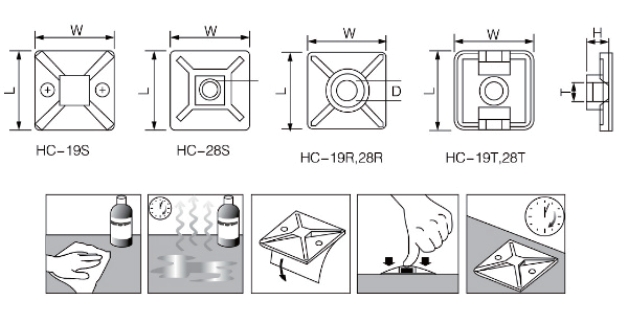

Usage: When used, tear the bottom tape off the release paper, and then attachit to the iron plate, and then thread it through the hole with the cable tie beltwhich can be used, eliminating the trouble of drilling the panel.
Cable tie: the width of cable tie is less than the hole (T).
| ITEM NO. | L×W(mm) | H(mm) | Mounting Hole(D)(mm) | Cable Tie Hole(T)(mm) |
| JG-20S | 20×20 | 6.1 | 2.9 | 4.5 |
| JG-25S | 25×25 | 7.5 | 3.5 | 5.0 |
| JG-30R | 30×30 | 8.7 | 4.5 | 5.5 |
| JG-40R | 40×40 | 6.4 | 5.2 | 6.0 |
