Flat cable clips
Flat cable clips details
Product characteristics and material
PE(white,grey),elasticity and shock resisting
Inserting type, nail attached in clips, Save time and cost.

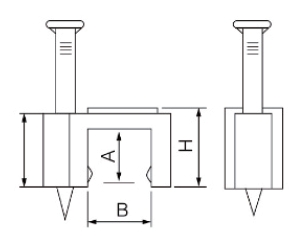

| ITEM.NO. | H(mm) | A | B | NAIL |
| JGF-4mm | 6.0 | 3.8 | 4 | 1.7×15 |
| JGF-5mm | 6.0 | 3.8 | 5 | 1.7×15 |
| JGF-6mm | 6.5 | 4.1 | 6 | 1.7×15 |
| JGF-7mm | 7.0 | 4.7 | 7 | 1.8×16 |
| JGF-8mm | 7.5 | 5.0 | 8 | 1.8×16 |
| JGF-9mm | 8.2 | 5.4 | 9 | 1.8×16 |
| JGF-10mm | 8.6 | 5.7 | 10 | 1.8×18 |
| JGF-12mm | 9.0 | 6.1 | 12 | 2.0×20 |
| JGF-14mm | 11.0 | 8.0 | 14 | 2.0×20 |
