Double-buckle cable ties
Double-buckle cable ties details
Product characteristics and material
Material: Made of UL approved nylon 66 or nylon 12 material, fire grade UL94V-2,acid resistance, corrosion resistance, good insulation performance, not easy toage, strong bearing capacity.
Applicable temperature range:-40°C to 85°C (PA66),-40°C to 65°C(PA12)
Installation temperature range: -10°C to 85°C(PA66), -10°C to 65°C(PA12)
Color: Black with UV resistant black.
Features: stronger tension, not easy to trip.

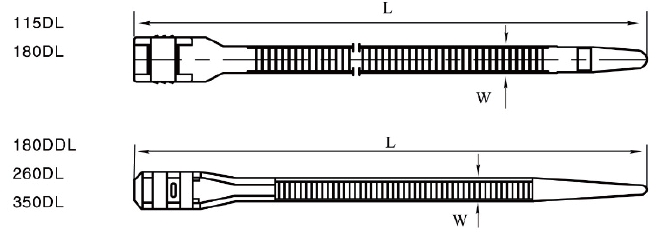

| Item NO. | L(mm) | W(mm) | Max.bundle Dia.(mm) | Tensile Strength | ||
| Inch | mm | Max. | LBS | KGS | ||
| JG-115DL | 51/8" | 115 | 6.0 | 22 | 78 | 35 |
| JG-180DL | 7" | 180 | 6.0 | 45 | 78 | 35 |
| JG-180DL | 7" | 180 | 9.0 | 45 | 90 | 40 |
| JG-260DL | 101/4" | 260 | 9.0 | 66 | 112 | 50 |
| JG-350DL | 135/8" | 285 | 9.0 | 90 | 112 | 50 |
