Fixed lock type cable tie
Fixed lock type cable tie details
Product characteristics and material
Material: Made of UL approved nylon 66 material, fire grade UL94V-2, acidresistance, corrosion resistance, good insulation performance, not easy to age, strong bearing capacity.
Applicable temperature range: -40°C to 85°C
Installation temperature range: -10°C to 85°C
Color: The standard color is natural, black, and UV resistant black, Special colors welcome to order.

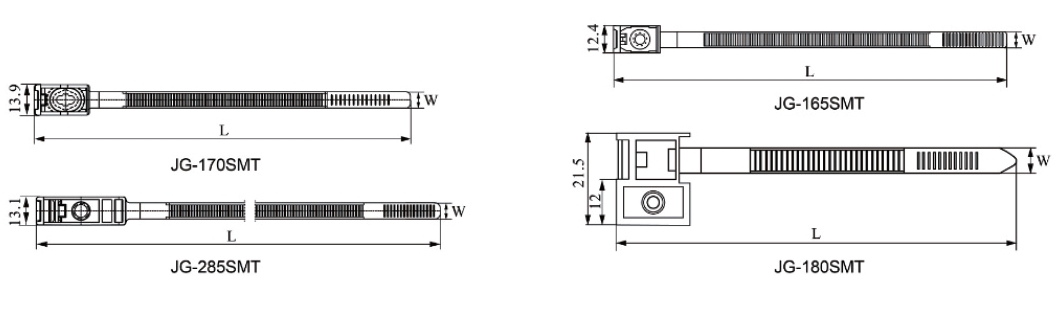

| Item NO. | L(mm) | W(mm) | Max.bundle Dia.(mm) | Tensile Strength | ||
| Inch | mm | Max. | LBS | KGS | ||
| JG-165SMT | 61/2" | 165 | 7.5 | 33 | 50 | 22 |
| JG-170SMT | 611/16" | 170 | 7.5 | 35 | 50 | 22 |
| JG-180SMT | 7" | 180 | 7.5 | 38 | 50 | 22 |
| JG-230SMT | 91/16" | 230 | 7.5 | 55 | 50 | 22 |
| JG-285SMT | 117/32" | 285 | 7.5 | 65 | 50 | 22 |
