Marker ties
Marker ties details
Product Feature
Material: Made of UL approved nylon 66 material, fire grade UL94V-2, acid resistance,corrosion resistance, good insulation perfomance, not easy to age, strong bearing capacity.
Applicable temperature range:-40℃ to 85℃
Installation temperature range: -10'℃ to 85℃
Color: The standard color is natural, black, and UV resistant black, Special colors welcome custom features: the blank sign at the front of the cable tie can be marked.

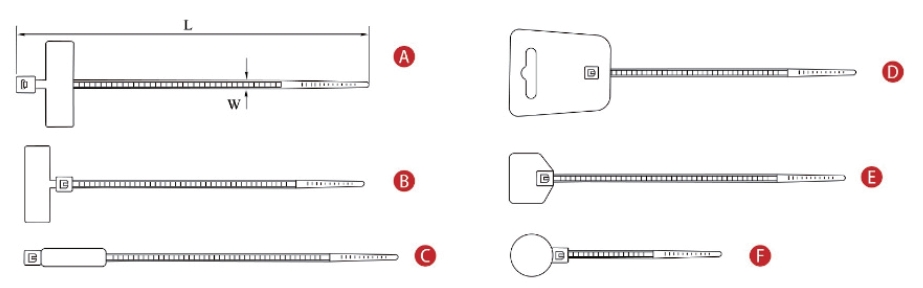

| Item No. | L | W (mm) | Tensile Strength | Sticker Size | ||
| Inch | mm | LBS | KGS | |||
| JG-100MKT A | 4.0 | 100 | 2.5 | 18 | 8.0 | 25×8 |
| JG-200MKT A | 8.0 | 200 | 2.5 | 18 | 8.0 | 25×8 |
| JG-205MKT A | 8.1 | 205 | 3.6 | 40 | 18.0 | 25×8 |
| Item No. | L | W (mm) | Tensile Strength | Sticker Size | ||
| Inch | mm | LBS | KGS | |||
| JG-100MKT B | 4.0 | 100 | 2.5 | 18 | 8.0 | 21×10 |
| JG-165MKT B | 6.5 | 165 | 3.2 | 40 | 18.0 | 15×25 |
| JG-215MKT B | 8.5 | 215 | 3.2 | 40 | 18.0 | 15×25 |
| JG-175MKT B | 6.9 | 175 | 5.4 | 50 | 22.0 | 11×36 |
| JG-200MKT C | 8.0 | 200 | 4.5 | 50 | 22.0 | 13×28 |
| JG-250MKT D | 9.8 | 250 | 4.8 | 50 | 22.0 | 65×27 |
| JG-215MKT E | 8.5 | 215 | 3.2 | 40 | 18.0 | 30×20 |
| JG-110MKT F | 4.3 | 110 | 3.0 | 18 | 8.0 | 15×25 |
