Drive Anchor

Also known as a hammer drive anchor, a drive anchor is an anchor with a nail-shaped pin enclosed in a sleeve. Once the pin is struck, the anchor expands into concrete, brick or block. These anchors are best suited for light duty fastening.

Anchor

Drive Anchor details

INT11455

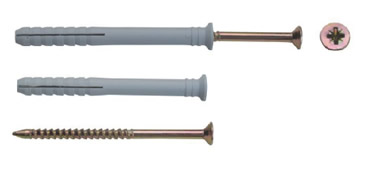

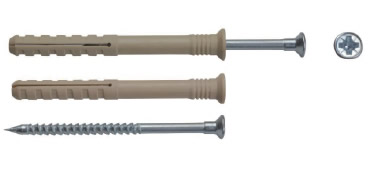

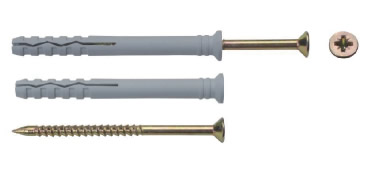

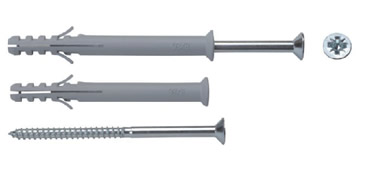

Hammer Drive Anchor Countersunk Head, With Pozi Head Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
5×25	5	25	3.5×28
5×30	5	30	3.5×33
5×35	5	35	3.5×38
5×40	5	40	3.5×43
5×45	5	45	3.5×48
5×50	5	50	3.5×53
6×30	6	30	3.8×33
6×35	6	35	3.8×38
6×40	6	40	3.8×43
6×45	6	45	3.8×48
6×50	6	50	3.8×53
6×55	6	55	3.8×58
6×60	6	60	3.8×63
6×70	6	70	3.8×73
6×80	6	80	3.8×83
6×100	6	100	3.8×103
8×40	8	40	4.8×43
8×45	8	45	4.8×48
8×60	8	60	4.8×63
8×80	8	80	4.8×83
8×100	8	100	4.8×103
8×120	8	120	4.8×123
8×135	8	135	4.8×138
8×140	8	140	4.8×143
8×160	8	160	4.8×163
10×80	10	80	5.8×83
10×100	10	100	5.8×103
10×120	10	120	5.8×123
10×135	10	135	5.8×138
10×140	10	140	5.8×143
10×160	10	160	5.8×163

INT11456

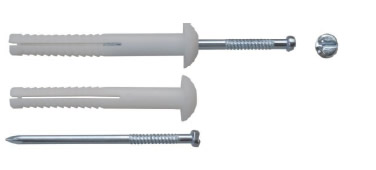

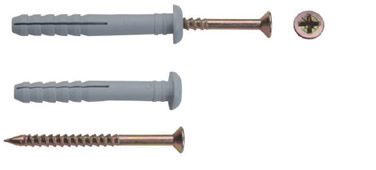

Hammer Drive Anchor Round Head, With Pozi Head Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
5×30	5	30	3.5×33
5×35	5	35	3.5×38
5×50	5	50	3.5×53
6×35	6	35	3.8×38
6×40	6	40	3.8×43
6×50	6	50	3.8×53
6×55	6	55	3.8×58
6×60	6	60	3.8×63
6×70	6	70	3.8×73
6×80	6	80	3.8×83
8×45	8	45	4.8×48
8×60	8	60	4.8×63
8×80	8	80	4.8×83
8×100	8	100	4.8×103
8×135	8	135	4.8×138
8×140	8	140	4.8×143

INT11457

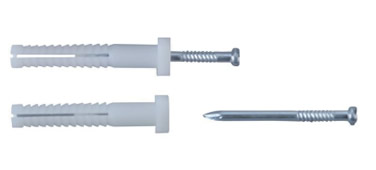

Hammer Drive Anchor Mushroom Head, With Pozi Head Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
6×35	6	35	3.8×38
6×40	6	40	3.8×43
6×60	6	60	3.8×63
6×80	6	80	3.8×83
8×60	8	60	4.8×63
8×80	8	80	4.8×83
8×100	8	100	4.8×103
8×120	8	120	4.8×123
8×140	8	140	4.8×143

INT11458

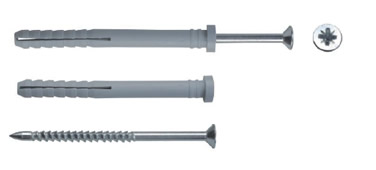

Hammer Drive Anchor Countersunk Head, "S" Type, With Pozi Head Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
5×30	5	30	3.5×33
6×40	6	40	3.8×43
6×60	6	60	3.8×63
6×80	6	80	3.8×83
8×60	8	60	4.8×63
8×80	8	80	4.8×83
8×100	8	100	4.8×103
8×120	8	120	4.8×123

INT11459

Hammer Drive Anchor Mushroom Head, "S" Type, With Pozi Head Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
6×40	6	40	4×45
6×60	6	60	4×65
6×80	6	80	4×85

INT11460

Hammer Drive Anchor Countersunk Head, With Pozi Head Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
8×80	8	80	4.8×83
8×100	8	100	4.8×103
10×80	10	80	5.8×83
10×100	10	100	5.8×103

INT11461

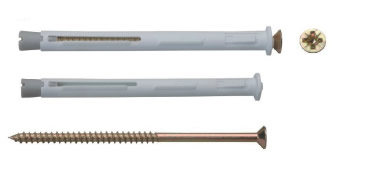

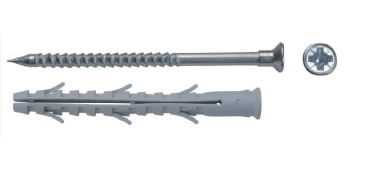

Frame Fixing Anchor(Two Wings), With Pozi Head Self Driling Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
6×40	6	40	4.2×43
6×60	6	60	4.2×63
6×80	6	80	4.2×83
8×60	8	60	5.2×63
8×80	8	80	5.2×83
8×100	8	100	5.2×103
8×120	8	120	5.2×123
8×140	8	140	5.2×143
10×80	10	80	6.8×83
10×100	10	100	6.8×103
10×120	10	120	6.8×123
10×140	10	140	6.8×143
10×160	10	160	6.8×163

INT11702

Frame Fixing Anchor(Three Wings), With Pozi Head Self Driling Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
8×80	8	80	4.8×83
8×100	8	100	4.8×103
10×100	10	100	5.8×103
10×115	10	115	5.8×118
10×135	10	135	5.8×138
10×160	10	160	5.8×163
10×180	10	180	5.8×183
10×200	10	200	5.8×203

INT11462

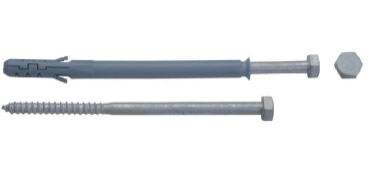

Frame Fixing Anchor

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
8×100	8	100	4.8×103
8×120	8	120	4.8×123
8×140	8	140	4.8×143
10×75	10	75	5.8×78
10×100	10	100	5.8×103
10×120	10	120	5.8×123
10×140	10	140	5.8×143
10×165	10	165	5.8×163

INT11463

Two Wings Frame Fixing

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
10×135	10	135	6.8×138
10×160	10	160	6.8×163

INT11464

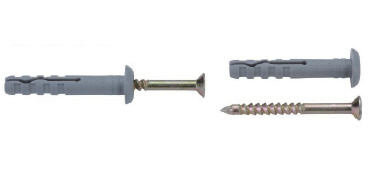

Hammer Drive Anchor Mushroom Head, With Pozi Head Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
6×25	6	25	3.0×30
6×37	6	37	3.0×42
6×50	6	50	3.0×55

INT11465

Hammer Drive Anchor Round Head, With Pozi Head Screw

Anchor Size(mm)	Drill Dia(mm)	Plug Length	Screw Size(mm)
6×25	6	25	3.0×30
6×37	6	37	3.0×42
6×50	6	50	3.0×55
