LW

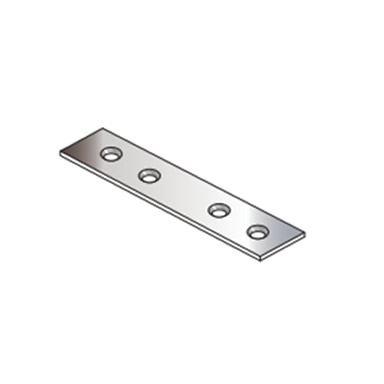

Narrow flats for minor carpentry and furnishing works. Their width enables to fix them to narrow sides of wood boards and slabs.

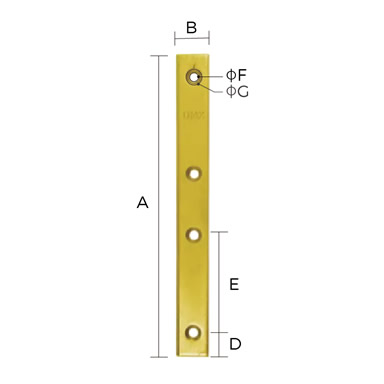

LW details
| CODE | A | B | C | D | E | ΦF | ΦG | Φ | |
|
| LW1 | 48 | 17 | 2 | 8 | 10 | 4.5 | 6.5 | 4 |
| LW2 | 78 | 17 | 2 | 8 | 18 | 4.5 | 6.5 | 4 | |
| LW3 | 98 | 17 | 2 | 8 | 22 | 4.5 | 6.5 | 4 | |
| LW4 | 148 | 17 | 2 | 8 | 53 | 4.5 | 6.5 | 4 | |
| LW5 | 193 | 20 | 4 | 15 | 62 | 5.5 | 7.5 | 4 | |
| LW6 | 243 | 20 | 4 | 15 | 78 | 5.5 | 7.5 | 4 | |
| LW7 | 293 | 25 | 5 | 15 | 78 | 5.5 | 7.5 | 4 |
